Cc MHC 608
600×800 mm
Rectangular Manhole Cover
D400 / C250 / B125
Type: Medium / Light Load TypeClass : : D400 / C250
Load Capacity : 400 kN (40 Ton) / 250 kN (25 Ton) / 125 kN (12.5 Ton)
The non-hinged composite manhole cover, which has a load-bearing capacity of 4 tons (400 kN) for heavy loads, 2.5 tons (250 kN) for medium loads, and 1.25 tons (125 kN) for light loads, is classified as D400/C250/B125/A15. It is made from durable material to withstand heavy loads.

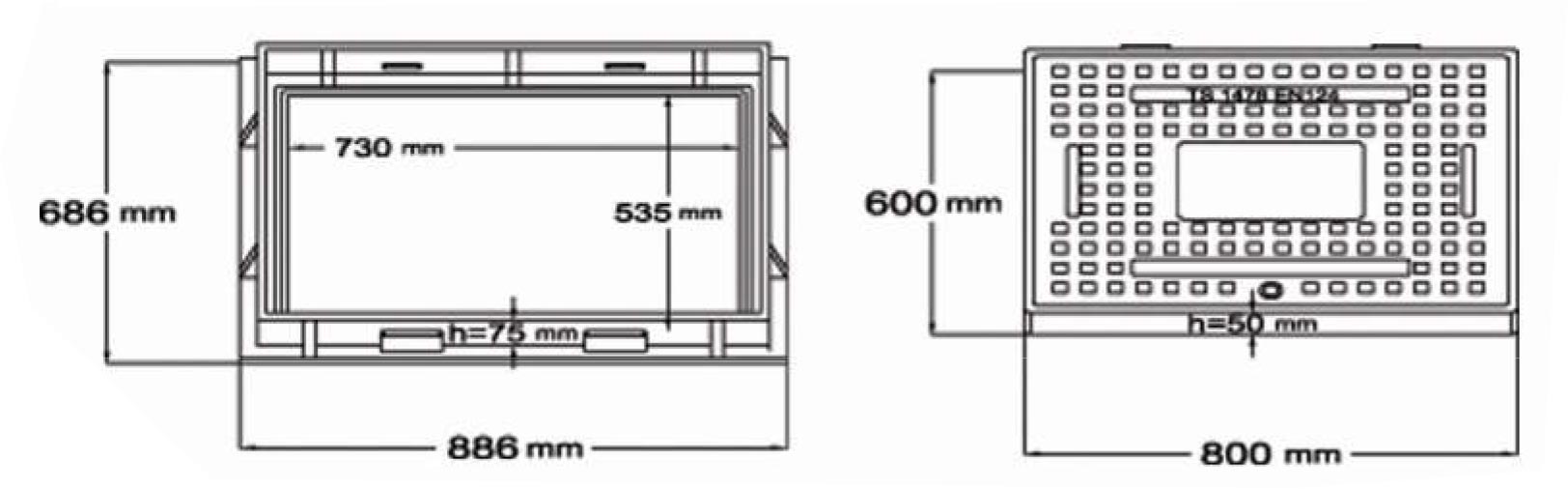

Based on the measurements of the bottom part, the inner dimensions of the manhole cover are Ø 730 mm in length and Ø 535 mm in width. When considering the outer circumference, it has dimensions of Ø 886 mm in length and Ø 686 mm in width. The cover itself measures Ø 800 mm in length and Ø 600 mm in width. The thickness of the cover is 50 mm, and the bottom seating part is 75 mm thick.
- Inner dimensions of the bottom part: Ø 730 mm in length, Ø 535 mm in width
- Outer dimensions of the bottom part: Ø 886 mm in length, Ø 686 mm in width
- Thickness of the bottom part: 75 mm
- Cover dimensions: Ø 800 mm in length, Ø 600 mm in width
- Cover thickness: 20 mm
- Load-bearing capacity: 400 kN (40 tons)
- Class: D400
Features
- It has a non-hinged rectangular frame system and 1 manual locking system.
- There is 1 metal handle on the cover.
- Rubber-based seals are used on the cover seating surfaces.
- Manufactured in compliance with TS 1478 EN124 standards.
Areas of Use
Suitable for all types of road vehicles, including road freight vehicles (including pedestrian streets), safety lanes, and parking areas.Advantages
- Lighter than metal.
- Requires no maintenance and has no risk of theft.
- Resistant to corrosion and does not rust.
- Easy to transport and assemble.
- Color and logo options are available.
