Cc MHC 606
600 x 600 mm Square
Manhole Cover
C250 / B125
Type: Medium Load / Light Load TypeClass : C250 / B125
Load Capacity : 250 Kn (25 Ton) 125 Kn ( 12,5 Ton )
The non-hinged composite manhole cover, which has a load-bearing capacity of 2.5 tons (250 kN) for medium loads and 1.25 tons (125 kN) for light loads, is made from materials resistant to medium to heavy loads. It falls under the C250/B125 class.

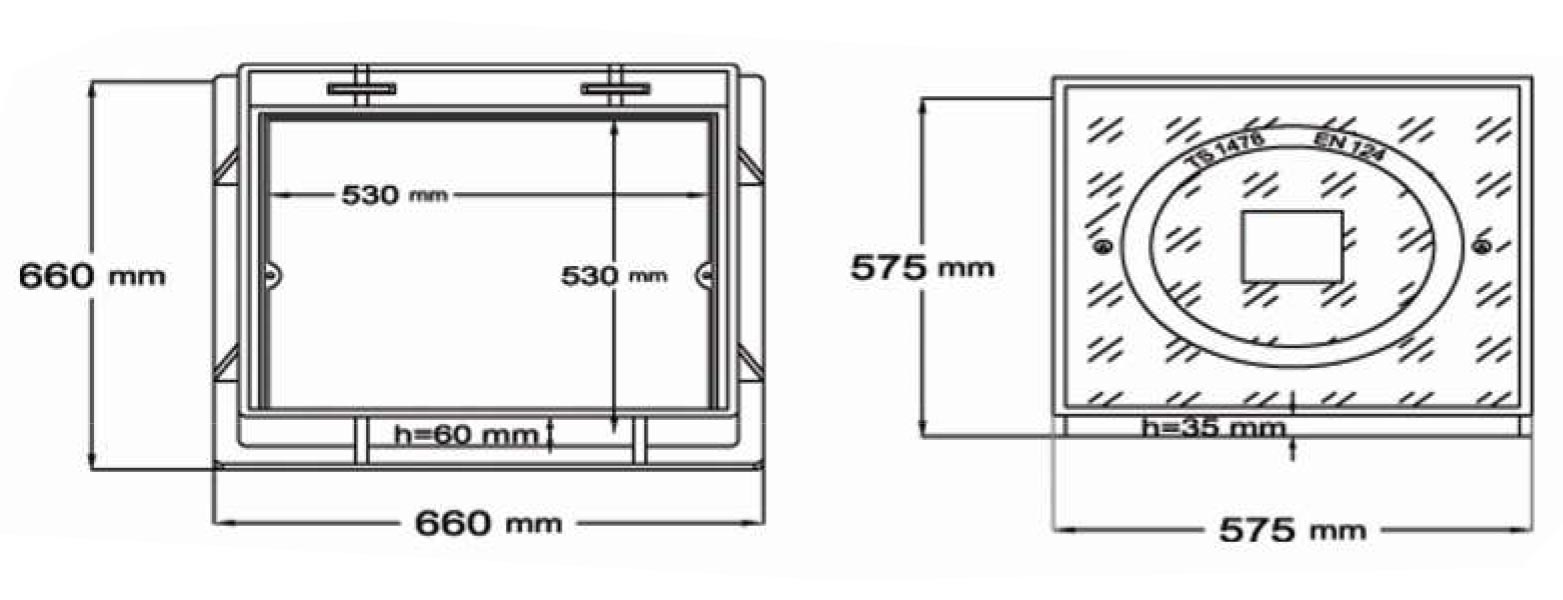

Based on the measurements, the inner dimensions of the bottom part of the manhole cover are 530 mm in diameter. When considering the outer circumference, it has a diameter of 600 mm. The cover itself has a diameter of Ø 575 mm. The thickness of the cover is 35 mm, and the bottom seating part is 60 mm thick.
- Inner diameter of the bottom part: Ø 530 mm
- Outer diameter of the bottom part: Ø 660 mm
- Thickness of the bottom part: 60 mm
- Cover diameter: Ø 575 mm
- Cover thickness: 35 mm
- Load-bearing capacity: 250 kN (2.5 tons)
- Class: C250
Features
- It has a non-hinged square frame system and 1 manual locking system.
- There is 1 metal handle on the cover.
- Rubber-based seals are used on the cover seating surfaces.
- Manufactured in compliance with TS 1478 EN124 standards.
Areas of Use
Suitable for all types of road vehicles, including road freight vehicles (including pedestrian streets), safety lanes, and parking areas.Advantages
- Lighter than metal.
- Requires no maintenance and has no risk of theft.
- Resistant to corrosion and does not rust.
- Easy to transport and assemble.
- Color and logo options are available.
