Cc MHC 1000

1000×1000 mm

Manhole Cover

C250 / B125

Type: Heavy Load Type
Class: D400 / C250
Load Capacity : 400 Kn (40 Ton) / 250 Kn ( 25 Ton )

The non-hinged composite manhole cover, which has a load-bearing capacity of 40 tons (400 kN) for heavy loads, is made from materials resistant to heavy loads. It weighs 68 kilograms. Based on the measurements, the inner dimensions of the bottom part of the manhole cover have a diameter of Ø 900 mm. When considering the outer dimensions, it has a diameter of Ø 1020 mm. The cover itself has a diameter of Ø 980 mm. The thickness of the cover is 40 mm, and the bottom seating part is 100 mm thick.

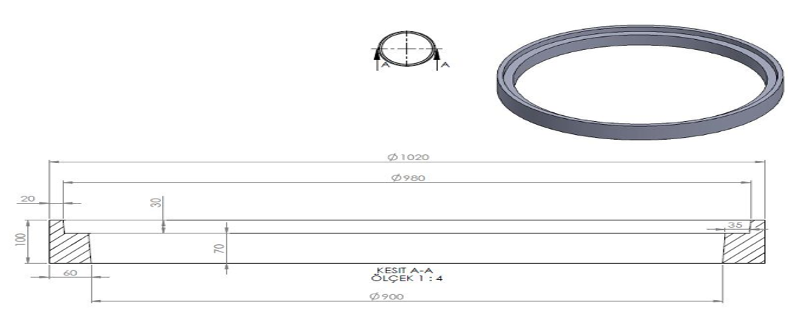

Inner diameter of the bottom part: Ø 900 mm
Outer diameter of the bottom part: Ø 1020 mm
Thickness of the bottom part: 100 mm

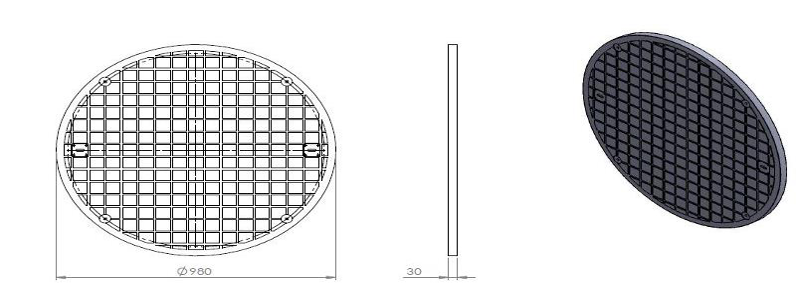

Cover diameter: Ø 980 mm
Cover thickness: 40 mm
Class: D400
Weight: 60 kg
Load-bearing capacity: 400 kN

Features

It is non-hinged and has 2 metal carrying systems.
Rubber-based seals are used on the cover seating surfaces.
Manufactured in compliance with TS 1478 EN124 standards.

Areas of Use

Suitable for all types of road vehicles, including road freight vehicles (including pedestrian streets), safety lanes, and parking areas.

Advantages

Lighter than metal.
Requires no maintenance and has no risk of theft.
Resistant to corrosion and does not rust.
Easy to transport and assemble.
Color and logo options are available.
