Cc MHC 100

Ø600 mm Manhole Cover

Hinged D400 / C250

Type: Heavy Load
Class : D400 / D250
Load Capacity : 400 kN or 40 tons for D400 and 250 kN or 25 tons for C250

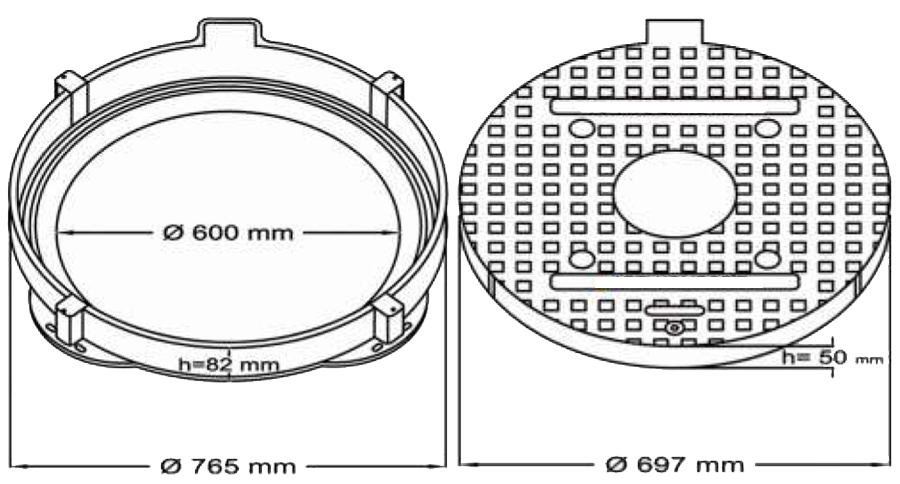

The hinged composite manhole cover, which has a load-bearing capacity of 40 tons (400 kN) and is made from durable material to withstand heavy loads, weighs 48 kilograms. The inner part of the manhole cover has a diameter of Ø 600 mm, based on the measurements of the bottom part. When considering the outer circumference, it has a diameter of Ø 765 mm. The cover itself has a diameter of Ø 697 mm. The thickness of the cover is 50 mm, and the bottom seating part is 82 mm thick.

Inner diameter of the bottom part: Ø 600 mm
Outer diameter of the bottom part: Ø 795 mm
Thickness of the bottom part: 35 mm
Cover diameter: Ø 697 mm
Cover thickness: 50 mm
Class: D400
Weight: 48 kg
Load-bearing capacity: 400 kN

Features

It is a hinged product with a frame and has 1 manual locking system.
There is 1 metal handle on the cover.
Rubber-based seals are used on the cover seating surfaces.
Manufactured in compliance with TS 1478 EN124 standards.

Areas of Use

Suitable for all types of road vehicles, including road freight vehicles (including pedestrian streets), safety lanes, and parking areas.

Advantages

Lighter than metal.
Requires no maintenance and has no risk of theft.
Resistant to corrosion and does not rust.
Easy to transport and assemble.
Color and logo options are available.
