Cc YSM 505T D400
Composite Grate
| Features | Dimensions (mm) |
| Composite Rainwater Grate Set |  |
| Type | Heavy Load - Medium Load - Light Load |
| Class | D400 / C250 / B125 |
50×50 Composite Rainwater Grate Set – TS 1478 EN 124 Standards Compliant This composite rainwater grate set is produced in accordance with TS 1478 EN 124 standards. The length of the grate is 500 mm, the height is 60 mm, and the width is 500 mm.
Specifications
- Dimensions: 500x500x60
- Produced in accordance with TS 1478 EN 124 standards.
- Class: D400
- Type: Heavy Duty
- Load Capacity: 400 kN (400 tons)
- Weight: 32 kg
- Frame system and 1 manual locking system are available.

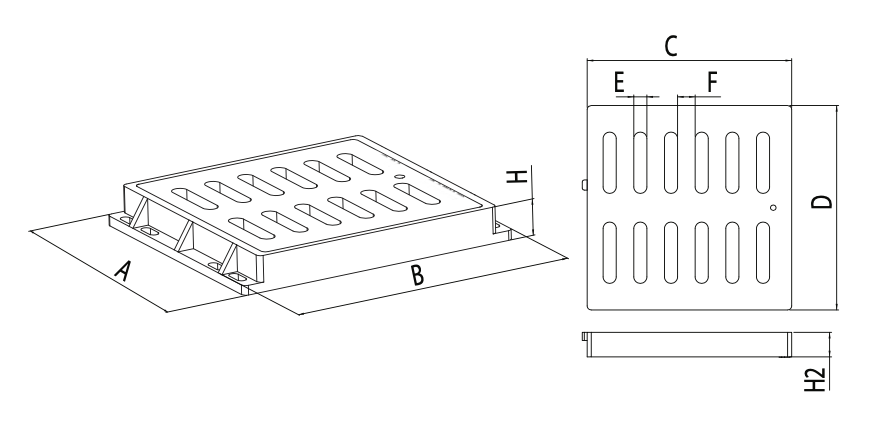

Frame Dimensions
- Dimensions: 510x610x76
- Interior Space: 500x500
Advantages
- Lightweight compared to metal.
- Requires no maintenance and is theft-resistant.
- Resistant to corrosion and does not rust.
- Easy to transport and install.
- Various color options are available.
