Cc YSM 406T D400
Composite Grate with Frame

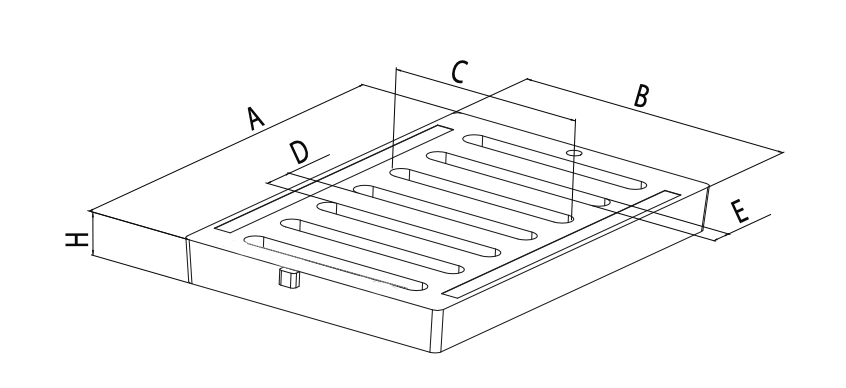

| Features | Dimensions (mm) |
| Composite Rainwater Grate |  |
| Type | Heavy Load - Medium Load - Light Load |
| Class | D400 / C250 / B125 |
This composite framed grate set is produced in accordance with TS 1478 EN 124 standards. The length of the grate is 600 mm, the height is 60 mm, and the width is 400 mm./p>
Specifications
- Dimensions: 400x600x60
- Produced in accordance with TS 1478 EN 124 standards.
- Class: D400
- Type: Heavy Duty
- Load Capacity: 400 kN (400 tons)
- Weight: 27 kg
- Frame system and 1 manual locking system are available.
Frame Dimensions
- Dimensions: 510x628x75
Advantages
- Lightweight compared to metal.
- Requires no maintenance and is theft-resistant.
- Resistant to corrosion and does not rust.
- Easy to transport and install.
- Various color options are available.
