Cc YSM 305 h:35
Composite Grate

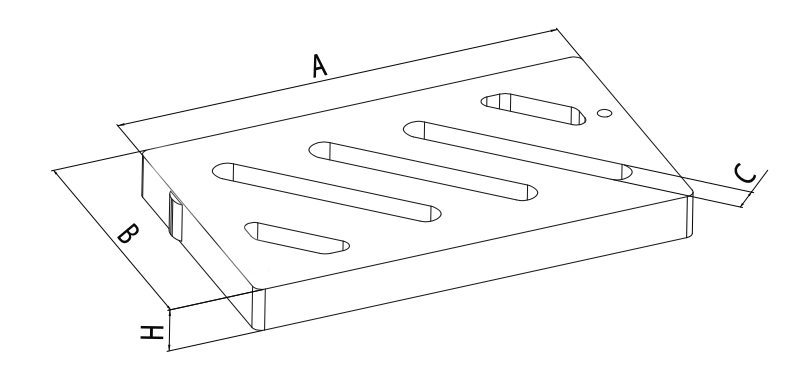

| Features | Dimensions (mm) |
| Composite Rainwater Grate |  |
| Type | Heavy Load - Medium Load - Light Load |
| Class | D400 / C250 / B125 |
This grate is manufactured in accordance with TS 1478 EN 124 standards. The length of the grate is 500 mm, and you have the option of choosing between a thickness of 3.5 mm or 50 mm, with a width of 300 mm. Additionally, the gaps between the bars are 220 mm in length and 23 mm in width.
Specifications
- Dimensions: 300x500x50
- Dimensions: 300x500x35
- Produced in accordance with TS 1478 EN 124 standards.
- Type: Medium-Light Duty
- Class: B125
- Weight: 5kg
- Load Capacity: 125 kn (125 ton)
Advantages
- Lightweight compared to metal.
- Requires no maintenance and is theft-resistant.
- Resistant to corrosion and does not rust.
- Easy to transport and install.
- Various color options are available.
