Cc YSM 205 h:40 D400
Composite Grate
| Features | Dimensions (mm) |
| Composite Rainwater Grate | 200 x 500 x 40 mm |
| Type | Heavy Load - Medium Load - Light Load |
| Class | D400 -C250 - B125 -A15 |

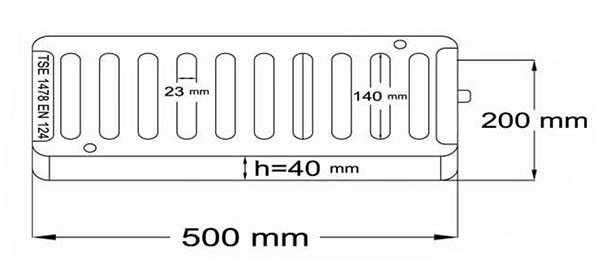

This 20x50 composite rainwater grate channel is produced in accordance with TS 1478 EN 124-5 standards. The length of the grate is 500 mm, the thickness is 40 mm, and the width is 200 mm. In addition, the gaps between the bars are 140 mm in length and 23 mm in width.
Features
- Dimensions : 20x50x4
- Produced in accordance with TS 1478 EN 124 standards.
- Type: Heavy Load
- Class: D400
- Weight: 5kg
Advantages
- Lightweight compared to metal.
- Requires no maintenance and is theft-resistant.
- Resistant to corrosion and does not rust.
- Easy to transport and install.
- Available in various color options.
