Cc OLK 2020
Corrugated Channel
Composite Drainage
Channel
| Feature |
Dimensions (mm) |
Code |
| Composite Drainage Channel |

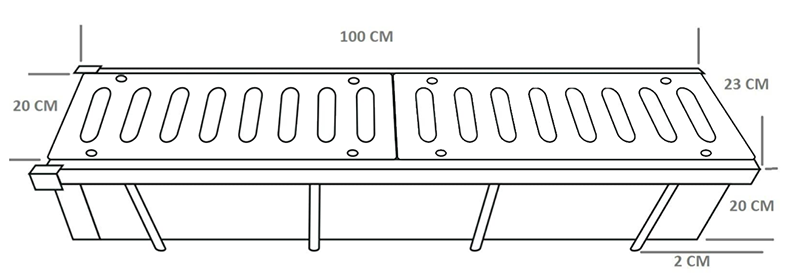

200 x 1000 x 200 mm |
- |
| Product Code |
- |
| Type |
Heavy Duty - Medium Duty - Light Duty |
| Class |
D400 - C250 - B125 - A15 |
| Load Resistance |
125Kn (12.5 t), 15Kn (1.5 t) |
Specifications
- Weight: Minimum 28 kg
- Complies with TS EN 124-5 standards.
- Can withstand a minimum load of 400 kN (40 tons).
- Can have text and logo imprints.
- Can be used individually or interlocked with ears for serial applications.
- Can be cut and drilled as needed.
- Has no scrap value, so there is no risk of theft.
- Lightweight, providing ease of assembly and transportation.
- Resistant to acids, bases, and solvents.
- Non-flammable and has self-extinguishing properties.
Advantages
- Lighter than concrete.
- Requires no maintenance and is theft-resistant.
- Resistant to corrosion and does not rust.
- Easy to transport and assemble.
